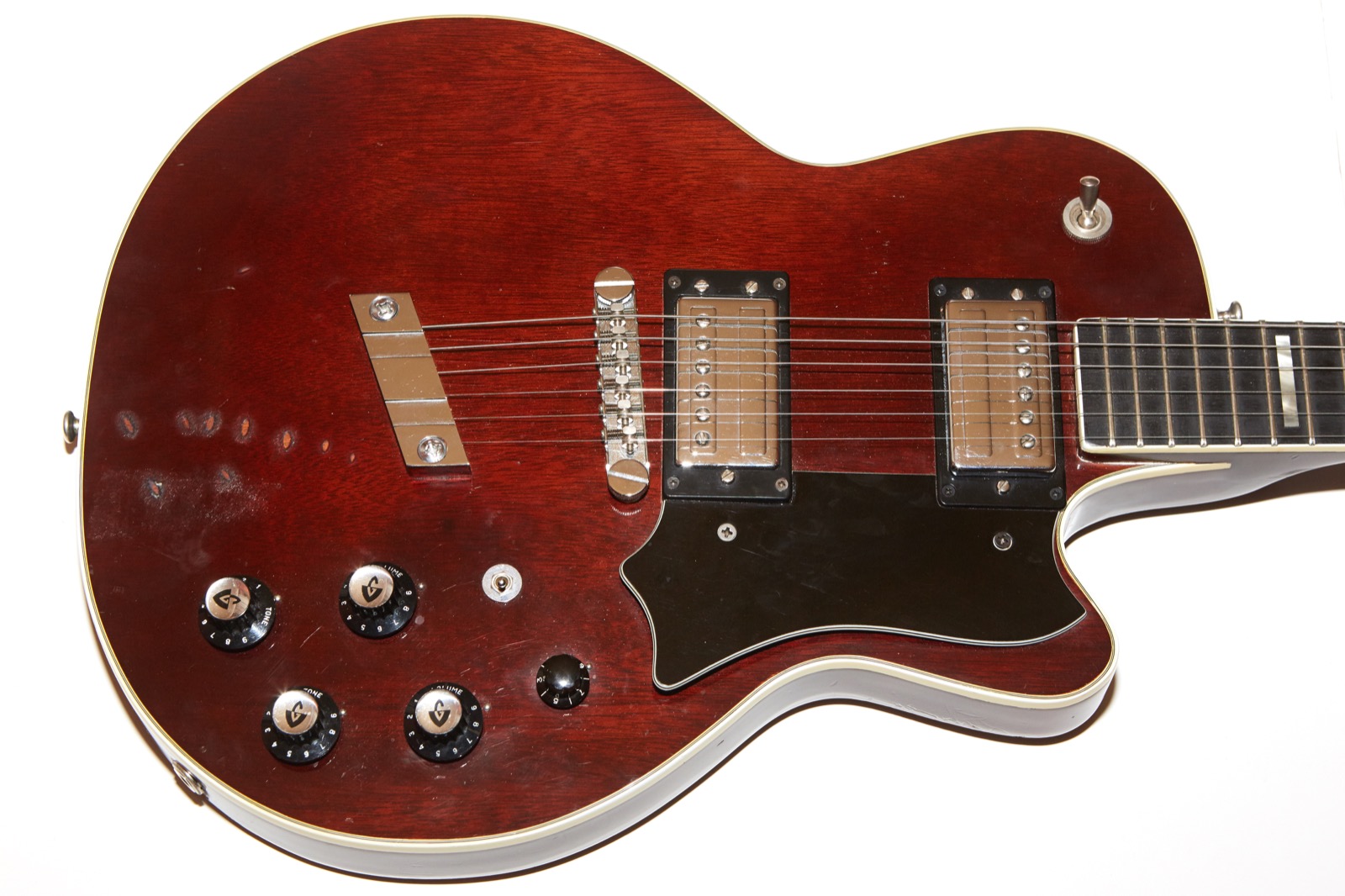

After recently reviewing a 1997 Guild Bluesbird and a 2016 Guild Bluesbird, I decided that I’d like to try one of the earlier 1970s models and searched around until I found this 1974 M-75 CS model on Reverb for a great price. In fact, it was a really great price likely due to the finish damage and wear obvious in the photos. Even though it’s got some warts, the guitar is structurally and electrically sound, which means that it plays and sounds great, even if it’s not up to my normal standards of near-mint guitars.

In honor of this guitars long and less-than-pristene past, I opted to photograph it right as it came from the box in all its dusty, dirty, and finish-marred glory. Let’s see how it fares given my normal desire for bright and shiny instruments.

Introduction

Guild-1974-M75-Bluesbird-Controls
A brief history of Guild Bluesbirds can be found in my article about the 2016 Bluesbird reissue, so I’ll spare you that dissertation here. These 1970s Bluesbirds are the first of the Bluesbird-named Guilds, and the successor to the M-75 Aristocrat. The CS designation in the model denotes that this is a solid-body guitar as opposed to the older M-75s that were hollow.

These 1974 Guilds have two Guild HB1 pickups that I’ll cover later in this article, a master volume which is great, even if it is in a bit of an odd position, a phase switch, and a neck that’s too damn small for my big hands. And yet, I can’t put the freakin’ thing down because it just sounds so good!

guildM75

As soon as I strap this guitar on I feel like the guy in the ad to the right. I’ve owned a lot of Guilds, but there’s something special about the M-75. It’s light, it’s resonant, it’s just the right size, it sounds amazing, and I feel like a rock star when I play it. Sure, I feel like a long-haired high-school rock star from 1979, but dammit, I was a long-haired high-school rock star in 1979! This guitar just reinforces the memories.

I’ve long opined that the reason Guild electric guitars aren’t more famous or desirable is because Jimmy Page didn’t play one. That may be true, and it may also be a saving grace since they don’t sell for crazy “Jimmy Page played one” prices. Hell, if they did then I wouldn’t be able to write all these articles about them.

Finish

Guild-1974-M75-Bluesbird-VinylDamage

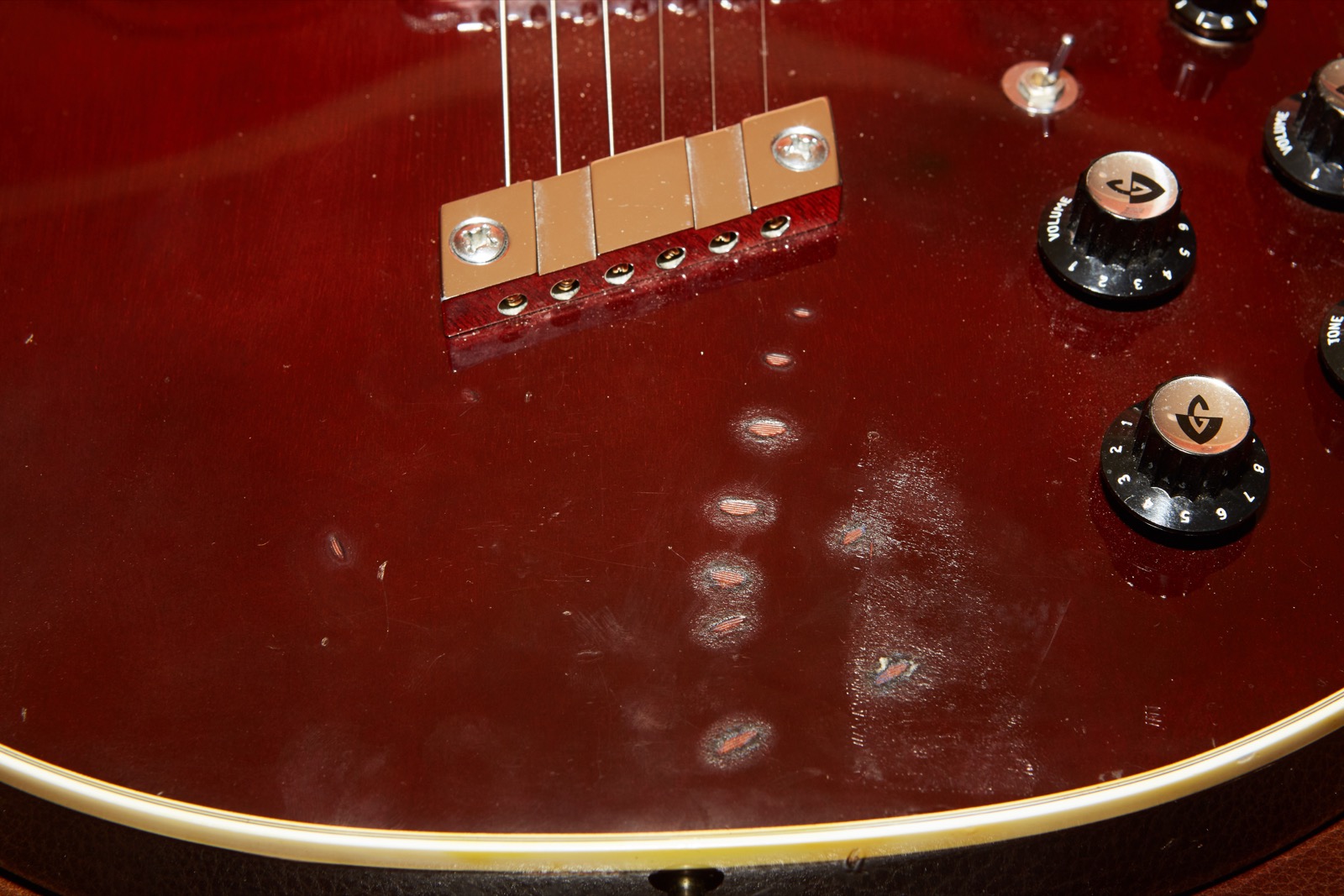

The finish on this guitar is lacquer, and the color is walnut. Here’s a fun fact about lacquer finishes, especially those from the 1970s: they react poorly with vinyl.

See that series of terrible melted spots on the finish? Those are the result of someone laying one of those fabulous (cheap) vinyl coiled cords that we all used in the 1970s on top of the guitar and then probably closing it all up in the case. The vinyl on in the cheap cord reacted with the lacquer and melted it down to the wood. If you zoom into the pic you can even see the pattern from the ribbed cable in the finish.

Guild-1974-M75-Bluesbird-VinylDamage2

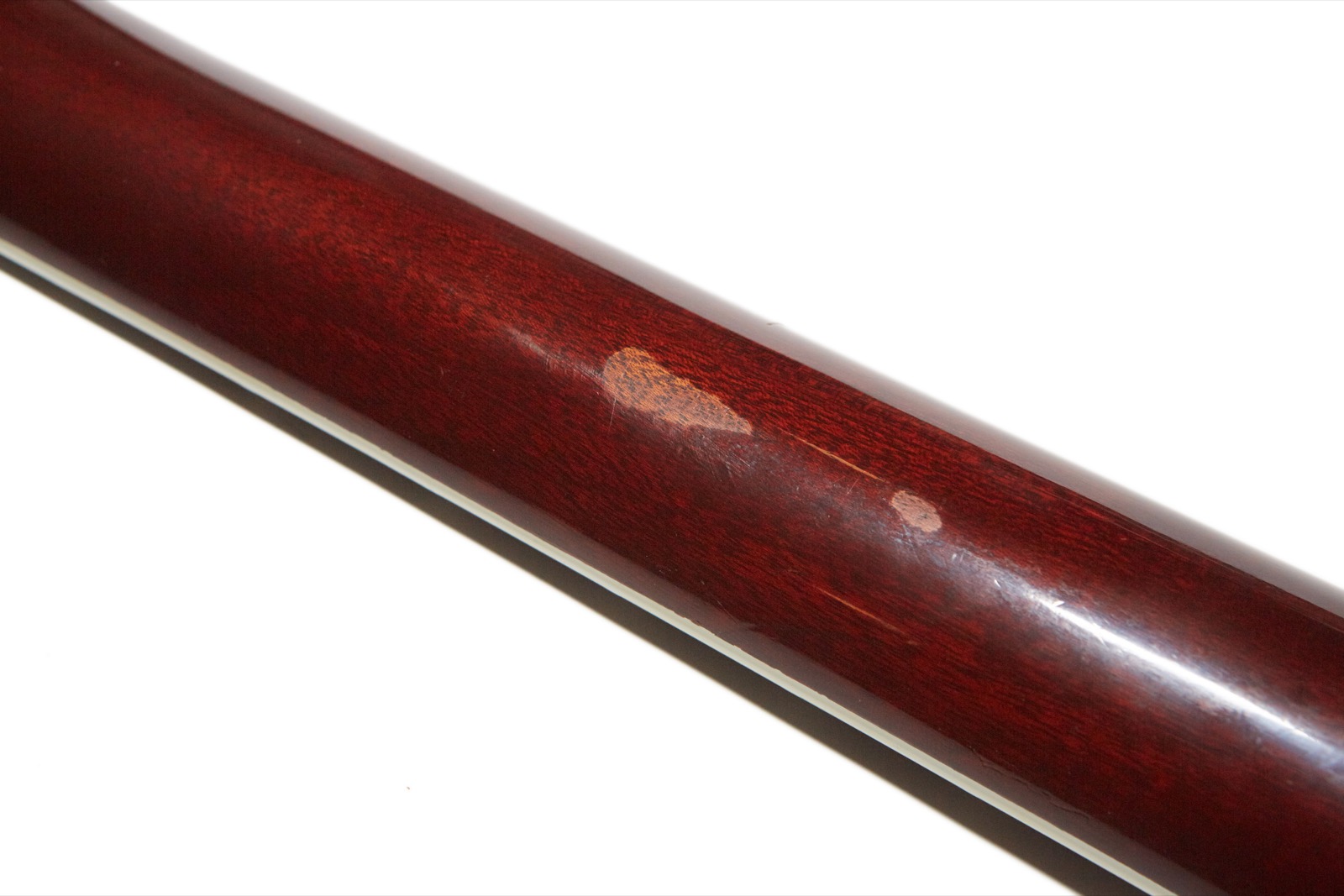

Back in the day all of the guitar stands that were commonly available also had surgical tubing to “protect” the guitar from damage. Well, we had no idea back then, but surgical tubing is made from vinyl and vinyl eats laquer which is why so many guitars from this era have ugly finish problems on the back of the neck, just like this guitar does. Thankfully, I don’t really feel this terrible scar when I play, so it doesn’t impact the playability at all, even if it does tweak my “I like pretty guitars” switch pretty hard.

Keep vinyl away from your lacquered guitars, kids. That includes anything that even looks like bubble wrap.

Guild-1974-M75-Bluesbird-BackBottom

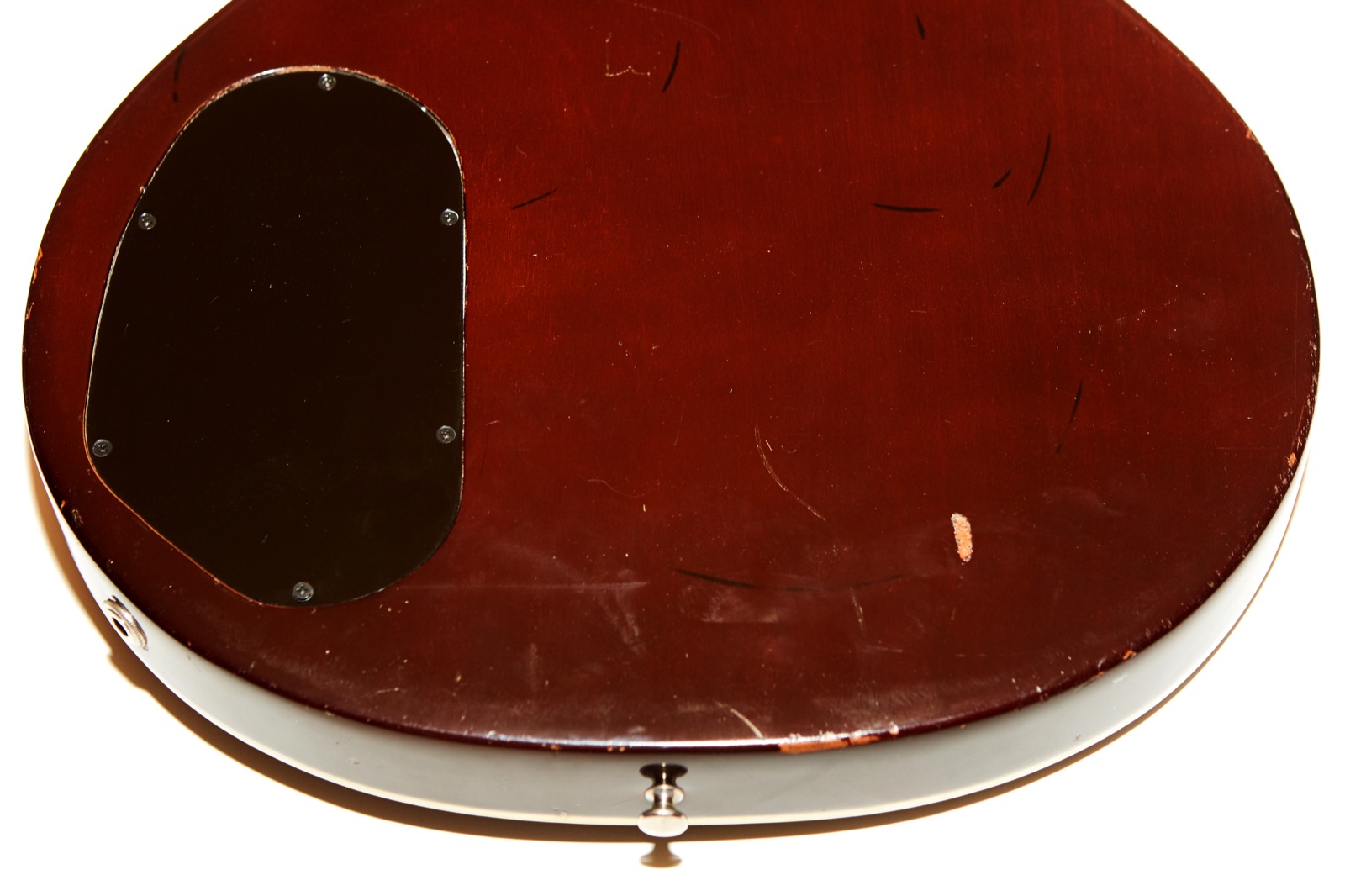

The back of the guitar is filled with some good old-fashioned wear and a surprising lack of deep-wood buckle rash. Given the abuse the rest of the finish has suffered, I’m surprised this guitar wasn’t played by someone wearing a huge brass belt buckle of the type favored by damn near everyone back in the 1970s. I only say that because I may have had one, though I’m proud to say that I never once scratched a guitar with it.

Fretboard and Neck

Guild-1974-M75-Bluesbird-Nut

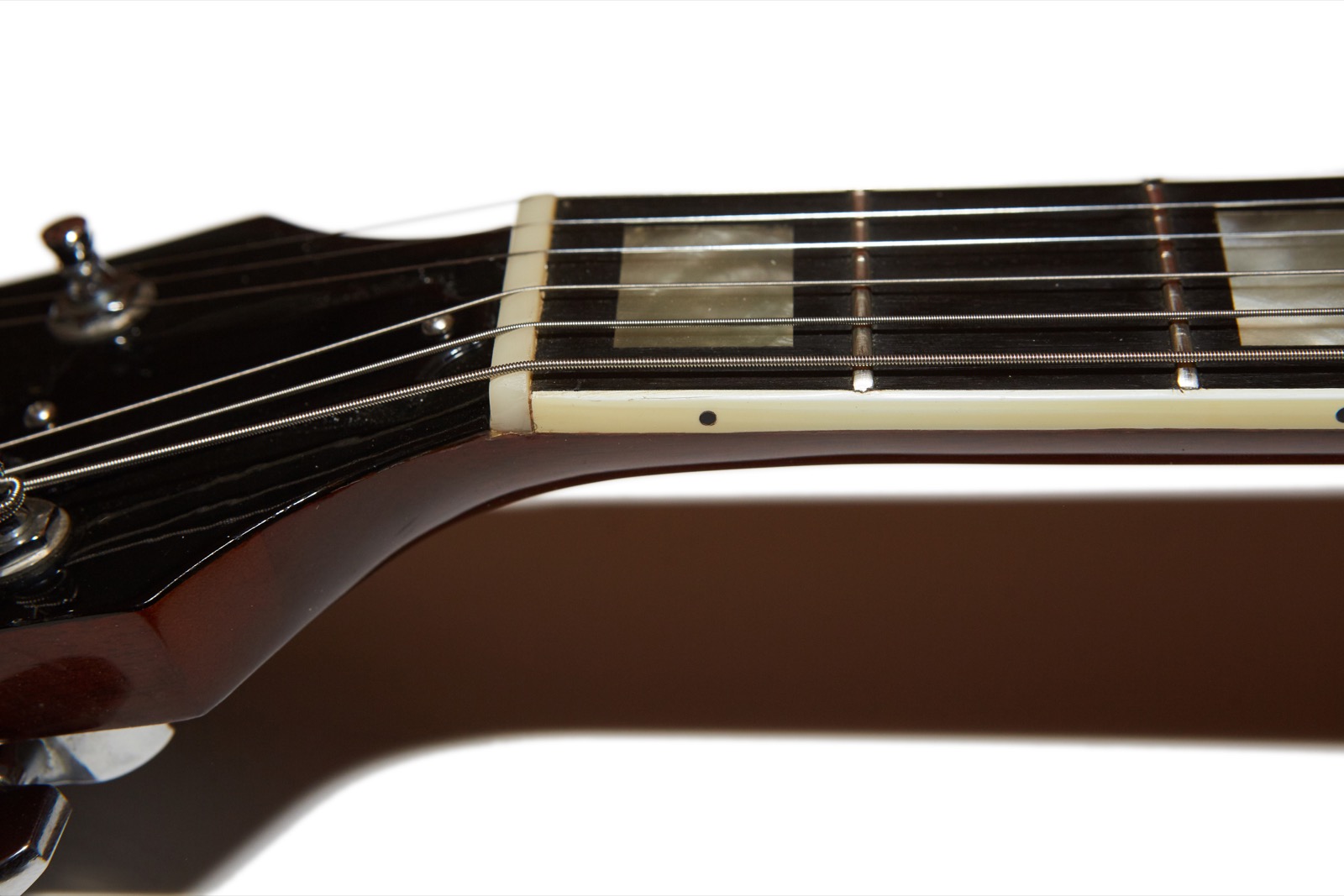

The fretboard on this guitar measures exactly 1 5/8″ at the nut and the depth of the neck is fairly thin. In fact, if the neck was a more modern 1 11/16″ and had a tad more depth to it, I would be using a Guild M75 as my number one because it sounds amazing. The neck size is about the only thing that I really don’t like about the guitar.

Take a quick look at the pic of the neck to the right. The fretboard is bound, but the binding is pretty thin compared to just about every other bound guitar I’ve played. The fret markers are also fairly small, though they work as intended.

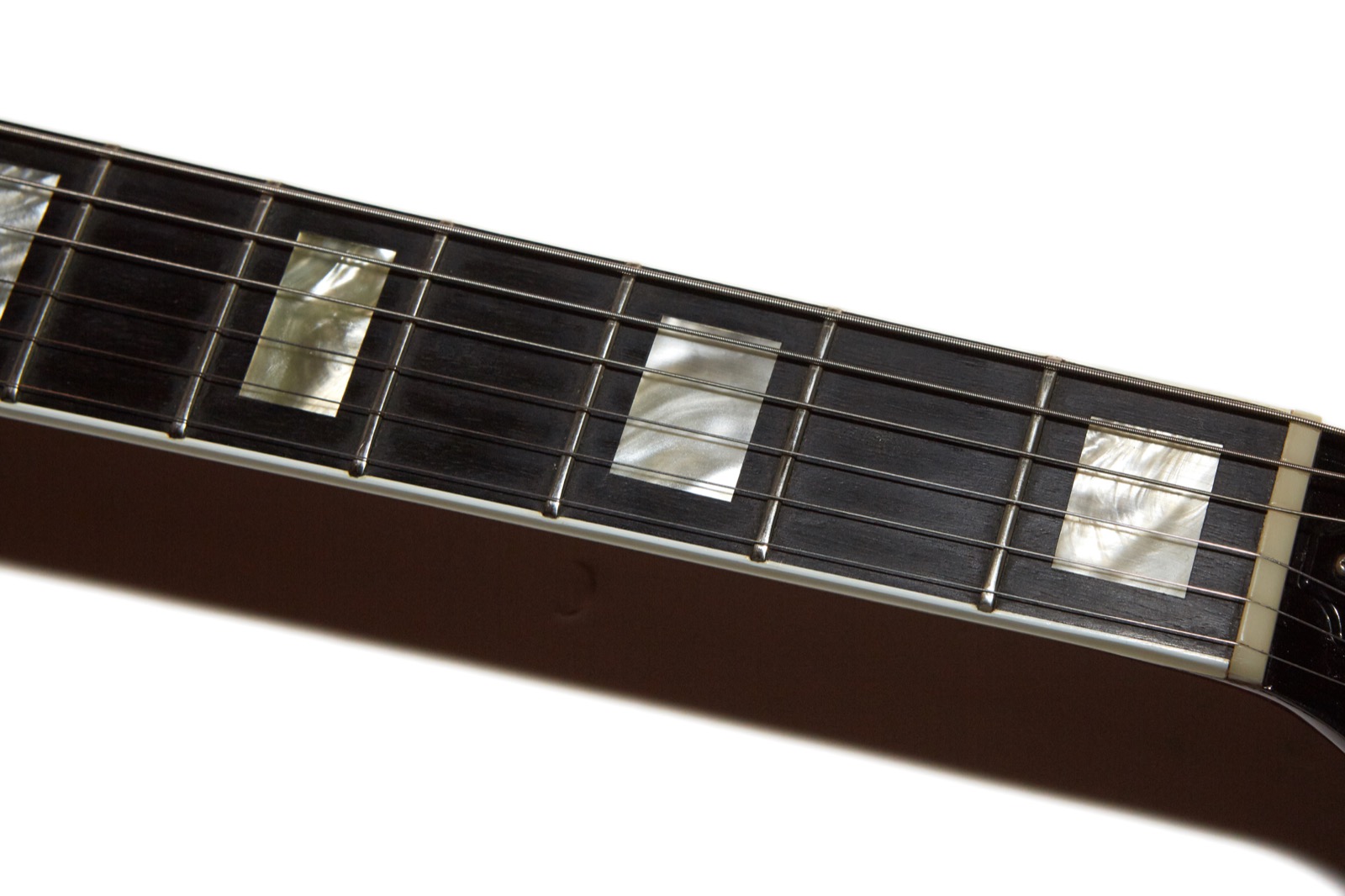

Guild-1974-M75-Bluesbird-NeckInlays
The inlays are beautiful, and have a great deal of optical depth to them. The inlay detail is well done with nice attention to detail, and the fretboard itself is a nice, deep black ebony.

The frets are a bit small at 3/64″ tall by 5/64″ wide which is typical of this era of Guild electric guitars. The neck attaches to the body at the 18th fret and  the fretboard radius measures at 16″ which seems about the norm for Guild electrics of this era. It really is a beautifully done fretboard and neck, especially if you like smaller examples.

Build Quality

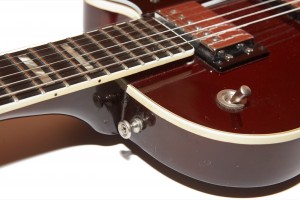

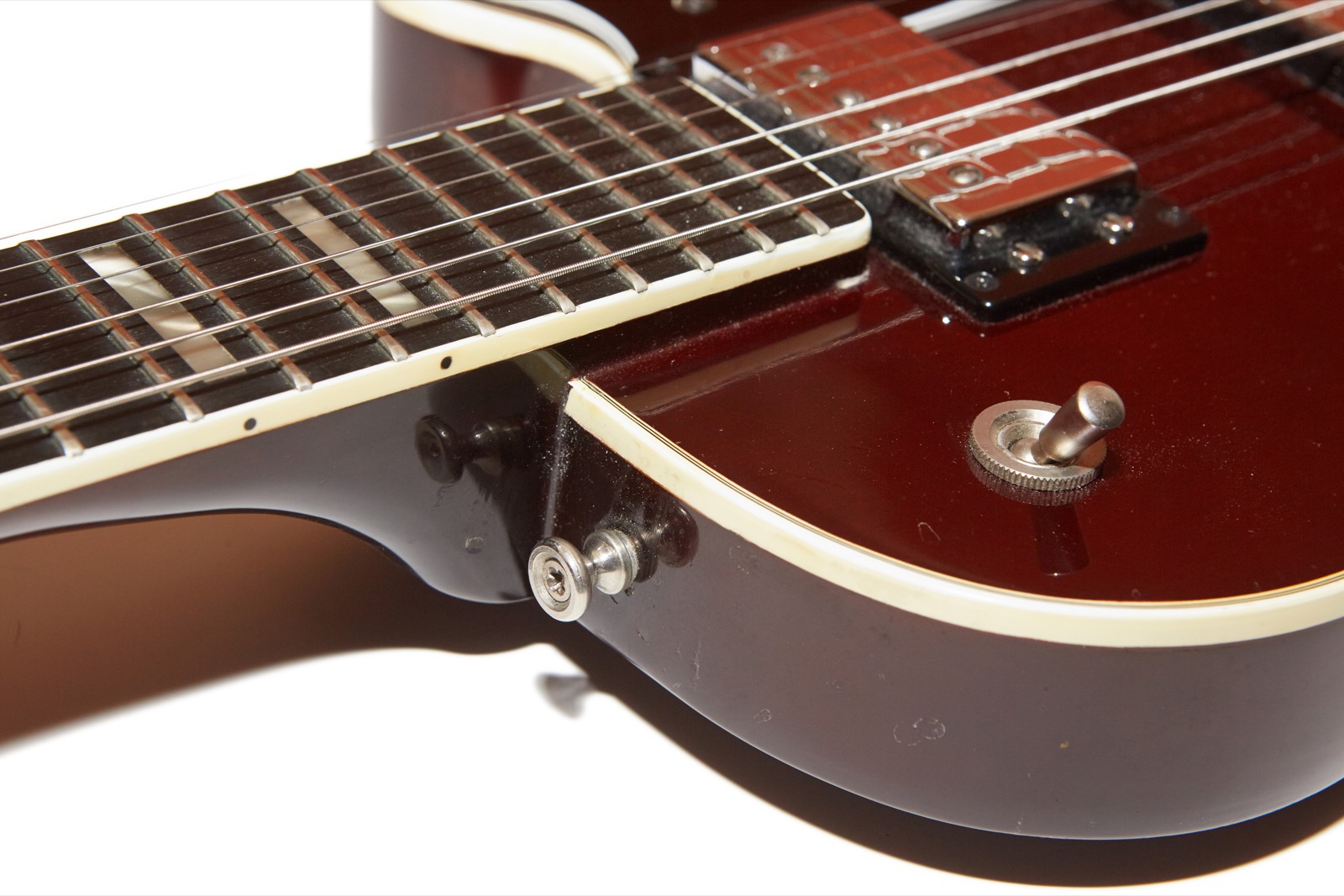

Guild-1974-M75-Bluesbird-TopStrapPeg
This, like most every Guild I’ve ever handled, is a very well built instrument. It’s very solid, with no rattles or loose bits anywhere to be found. This is a mahogany guitar with an arched top which makes it kind of like a Les Paul without the maple cap.

There are no obvious shortcomings of the design of the guitar, though some might complain about the upper strap button being too close to the neck which makes some straps rub up against the neck thus causing wear. There is a noticable lack of such wear on this guitar making me wonder if the guy who put it in the case with the coiley cord was so despondent that he just closed up the case and left it alone. For years.

The pick guard is an odd affair that is screwed right into the top in multiple spots making it a bit ugly to remove. Thankfully, it doesn’t get in my way when playing so I just left it as-is. Thankfully, Guild hadn’t included logos on pick guards in this series of guitars, at least in this year’s model, so I don’t have any other reason to remove the guard.

If you told me that this guitar was chambered I would believe you, but without the proper name plate (see the Electronics section below) I don’t know if the model number suffix -CS (solid body with chrome) is included. The guitar weighs in at 8 pounds on the nose and the pics of the electronics later on doesn’t show any chambers so I’m going with solid.

Pickups

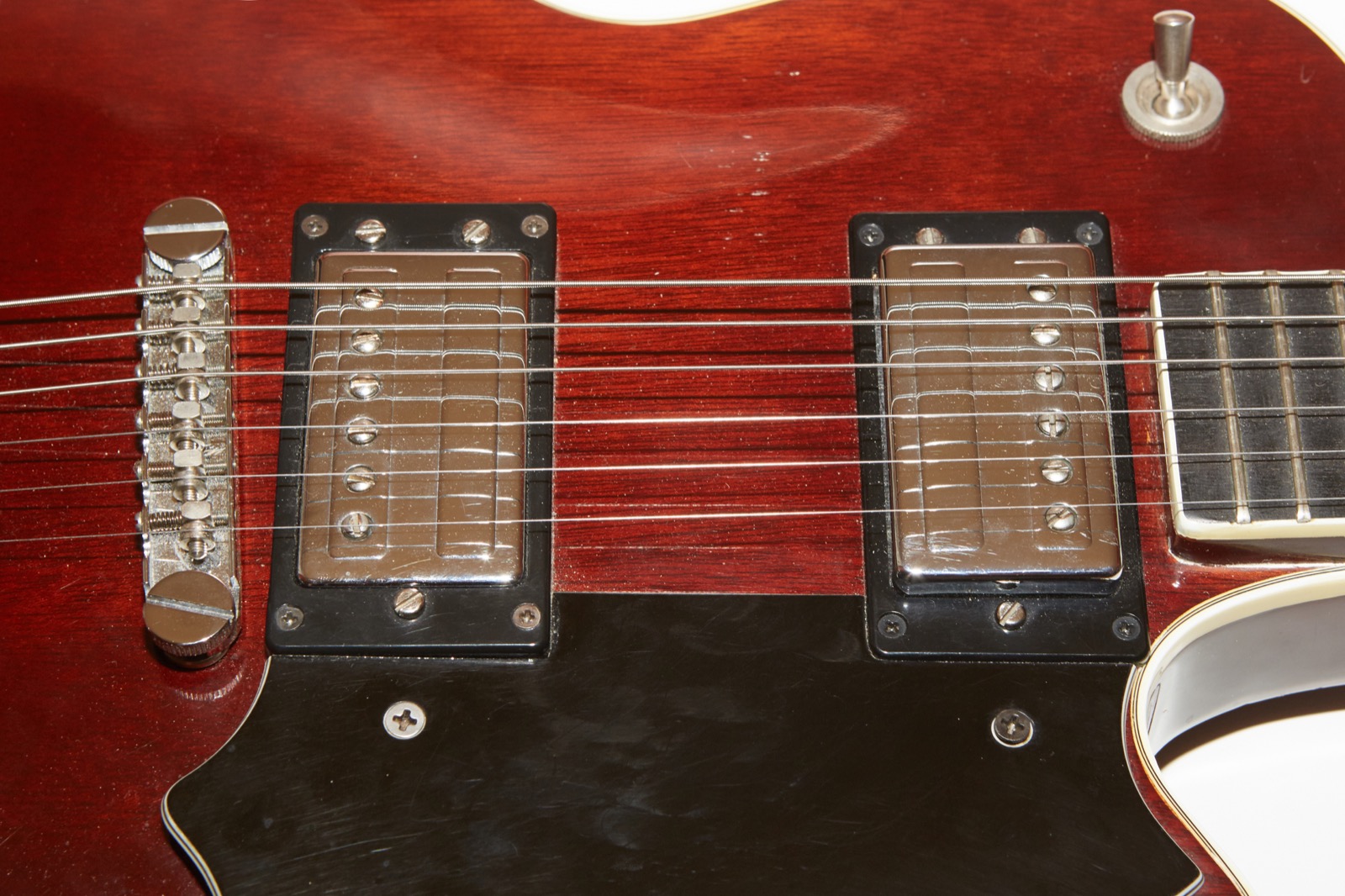

Guild-1974-M75-Bluesbird-Pickups
The pickups in this guitar are the coveted and original Guild HB-1s. These pickups in this guitar are a pretty damn magical combination because the guitar will growl with the best Les Pauls Juniors while behaving like a Les Paul and sometimes sounding almost like a semi-hollow without being exactly like any of them. I love that!

These are low-wind pickups measuring around 7k Ω and 7.3k Ω and have all the chime, articulation, and character that Guild HB-1s are known for. They are very PAF-like with a bit of extra chime where it counts.

Electronics

Guild-1974-M75-Bluesbird-Controls

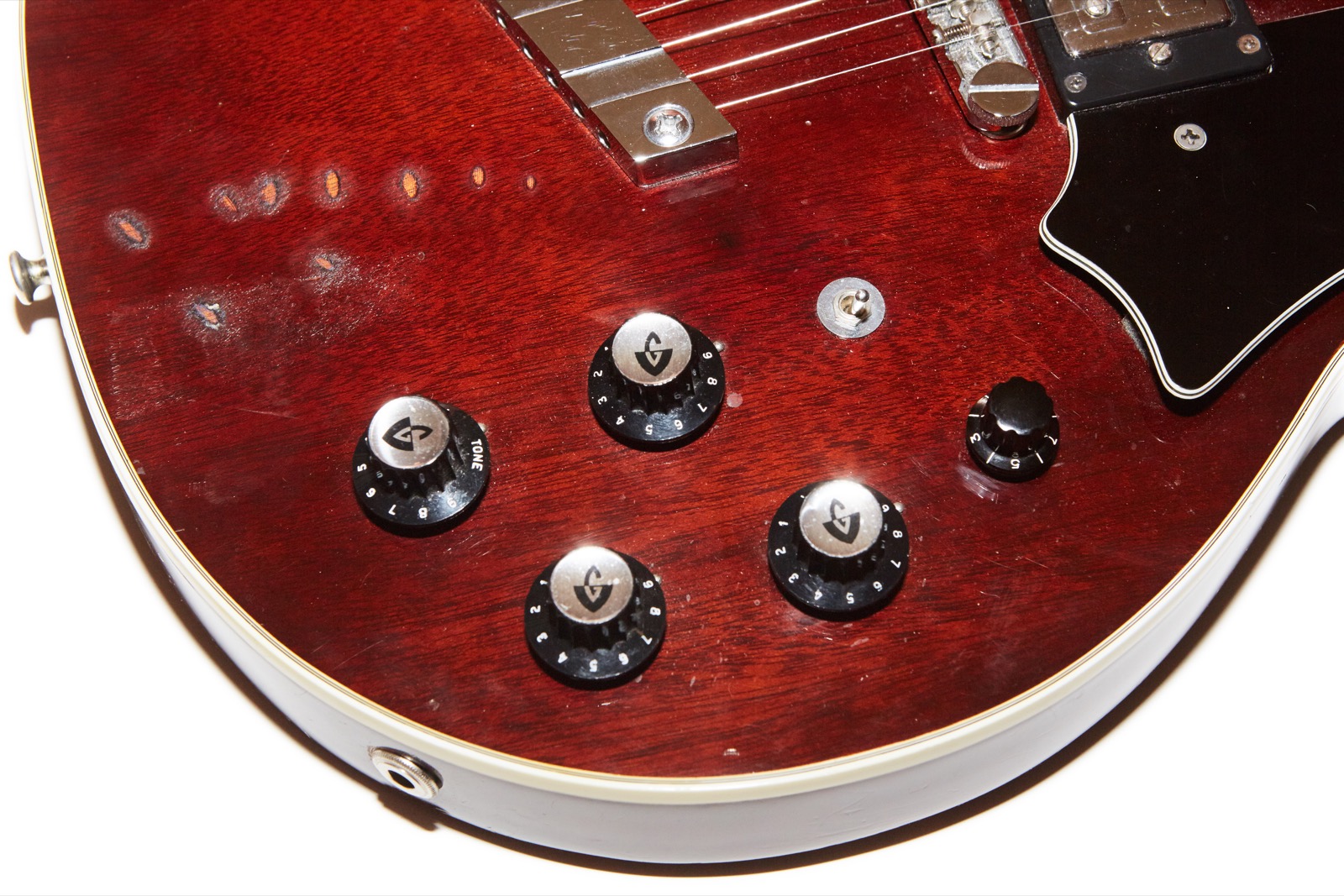

This guitar has the typical pickup selector switch, but also includes a phase switch which was a common inclusion on 1970s Guilds. This switch inverts the phase of the bridge pickup which delivers that honky thin type of sound when both pickups are engaged together.

This guitar has the typical 4-knob control scheme, but also includes a master volume near those controls. I love master volume controls on guitars and wish that more models had them, but I’m not a huge fan of the smaller knobs that Guild used on their master volumes. Given the location they chose on these guitars, though, a smaller knob actually sort of makes sense.

As an odd bit of mystery, this guitar came with a control plate cover that doesn’t belong to the guitar. The serial number for the guitar is written on a sticker on the control plate cover and it doesn’t match the one on the headstock. Not only that, but the model number has a -BLK suffix indicating a black finish which this guitar quite obviously does not have.

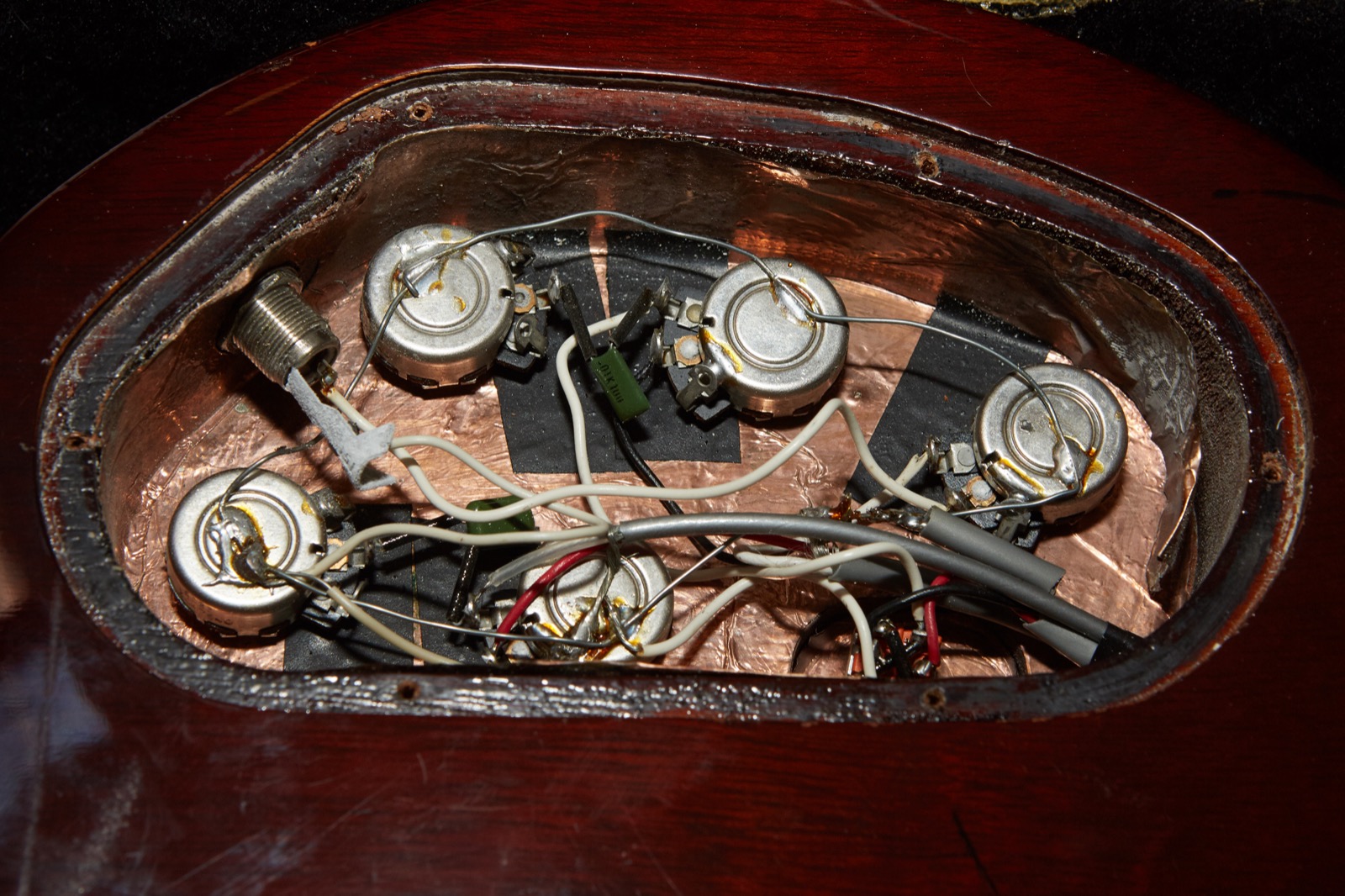

Guild-1973-M75-Bluesbird-ControlCavity1

The electronics cavity is completely lined with copper as are all the Guild electric guitars I’ve seen from the ’70s. The wiring is clean and while it certainly could be neater, that’s really just my inner soldering nerd lashing out.

The guitar has a master volume and a phase switch which makes the wiring a bit more complicated than a typical two humbucker guitar, so the extra wiring can excuse the little bit of mess. Besides, it still looks better than the wiring I’ve seen in most of the guitars from the past 20 years, imports and domestics alike.

Hardware

Guild-1974-M75-Bluesbird-Bridge2

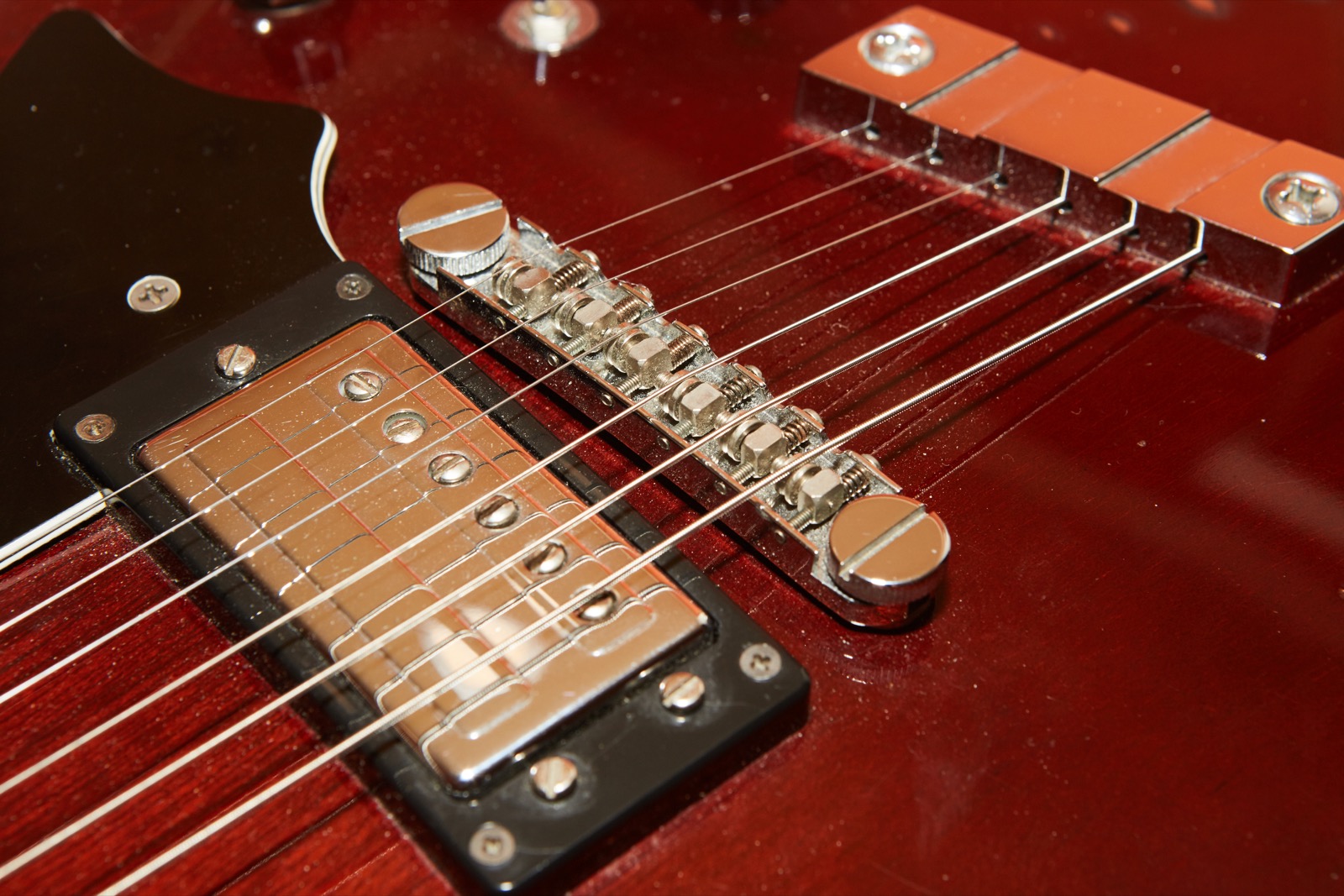

Is it chrome? Is it nickel? I don’t know. It’s silver. Actually, the CS in the model designation M-75-CS (assuming that’s what this guitar is) means Chrome Solidbody, so I’m guessing chrome.

The bridge is a Mueller type bridge popular on Guild electric guitars in the 1970s. I personally love these bridges, though they can be problematic if you break one of the tiny parts as the parts can be very difficult to find. I had a Guild S300A-D for thirty years with the same bridge that I played every damn day and I never broke or lost any parts.

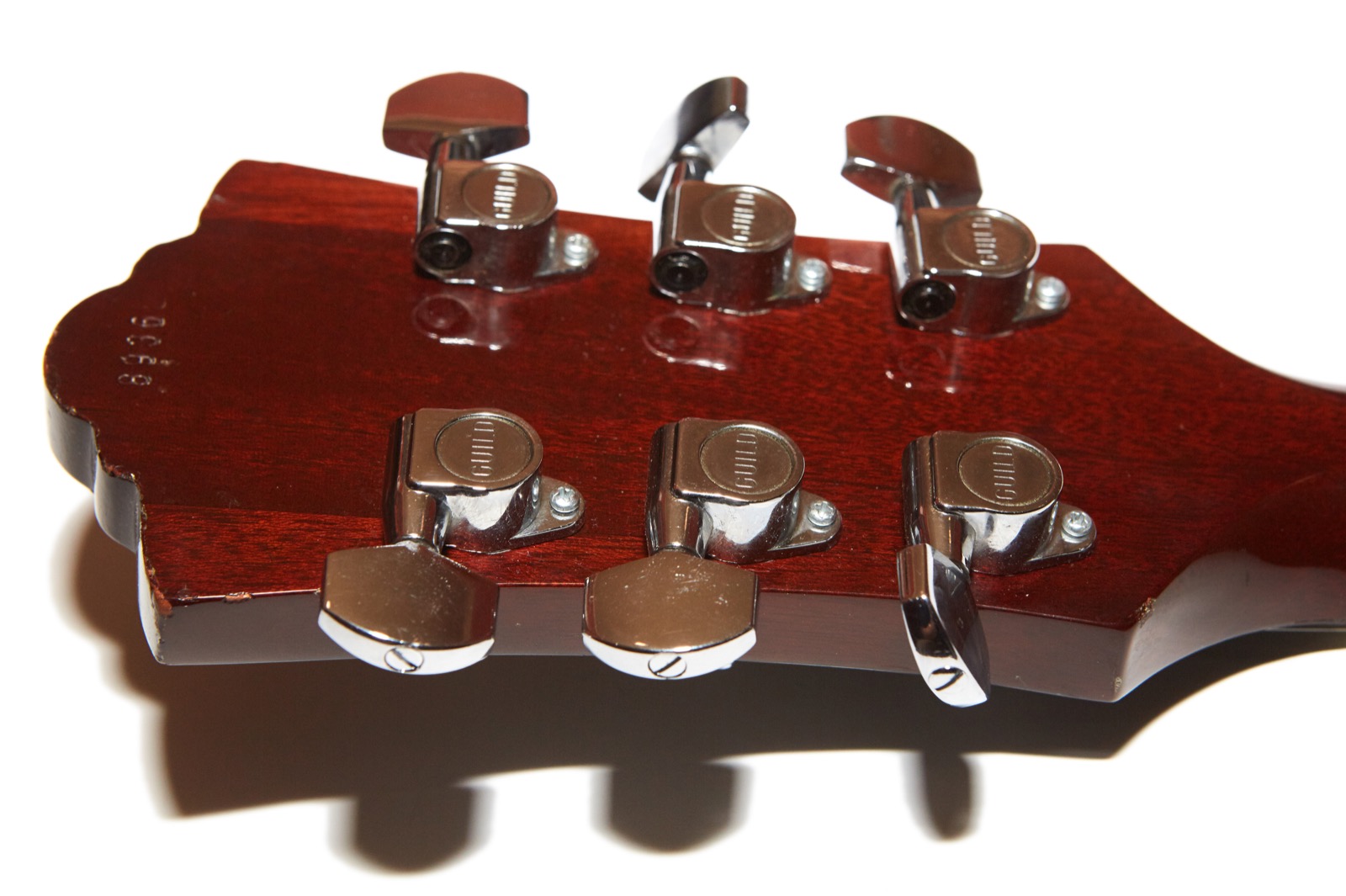

Guild-1974-M75-Bluesbird-Tuners

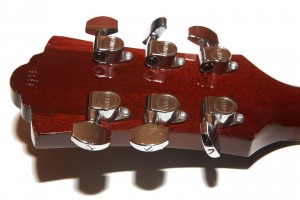

The tuners are Guild-labeled Schallers which are my favorite tuners in both the looks and functionality departments. I find them to be very robust, I love the appearance, and I especially love the buttons which I find to be much more usable than, say, Grovers, at least in my big fingers. Schallers on a Guild headstock with the Chesterfield logo is about the best looking combination out there in my opinion, and when it comes to opinions, boy, have I got a lot of them!

Guild-1974-M75-Bluesbird-SwitchTip

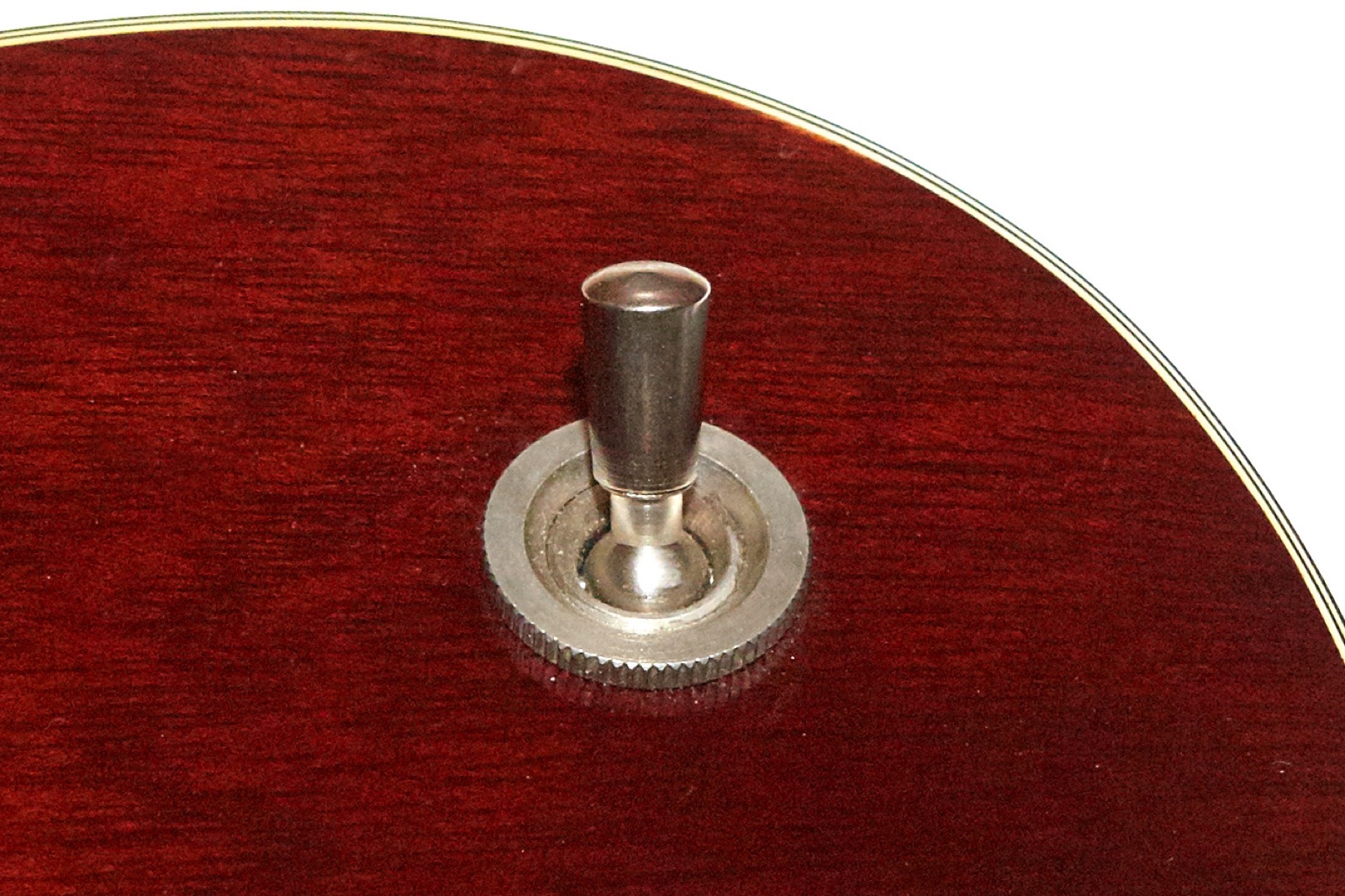

A quick note is in order about the real Guild switch tips. These switch tips are notoriously hard to find and they’re different than the typical switch tips found online. Why? Look closely at the image to the right. The top of the switch tip is actually domed, and that stupid little feature is a very big deal to we Guild guitar collectors. It’s one of the first things that I check when I investigate a vintage Guild electric guitar since they’re so hard to find. If a vintage Guild doesn’t come with one, there’s a good chance that you’ll never find one to to replace it. Sure, you can use a typical Switchcraft tip that looks almost the same, but those tips make my inner Guild Collector cry.

Sound

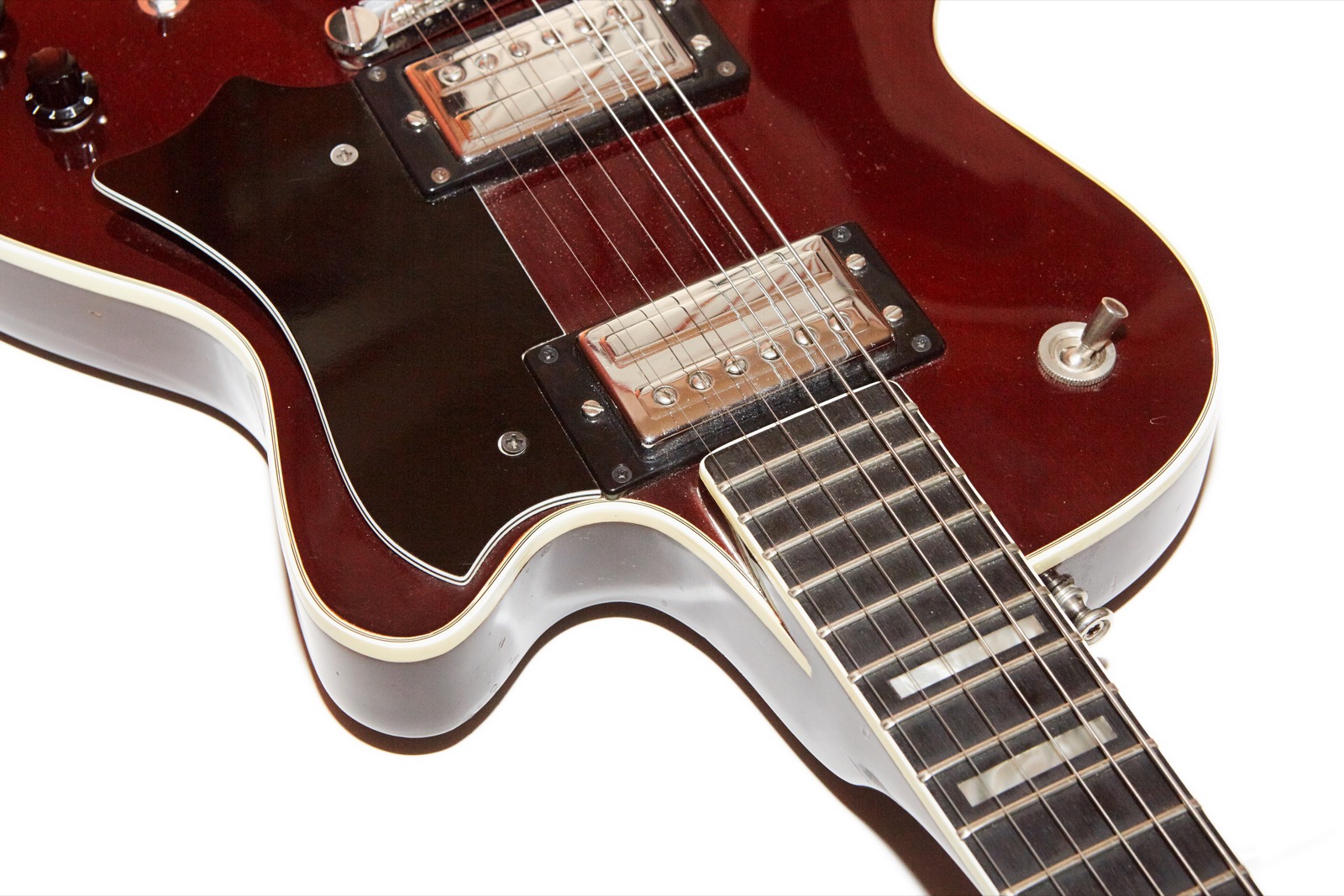

Guild-1974-M75-Bluesbird-Top2
This guitar sounds amazing. Hyperbole? Not at all. I’m amazed every time I play it. Sure the neck is small, but the tone, oh the tone! There is something magic about this guitar. Sure, you’ve probably read all sorts of things about magic or mojo when it comes to guitars, but as someone who’s played hundreds of guitars I can tell you that every now and then a guitar comes along that’s got something that most others just don’t have. I don’t know if it’s old wood or hide glue or if the damn thing is infested with magical tone fairies, but this guitar just sounds great in a way that I can’t explain. Sadly, I’m not sure that the recordings convey that which makes me wonder if the mojo is perfect combination of feel, resonance, sound, percussion, and a thriving fairy infestation.

All recordings in this section were recorded with an Olympus LS-10. The amp is an Axe-FX Ultra set to either the “Basic Brit 800” (Marshall JCM-800) or “Tiny Tweed” (Fender Champ) setting. The speaker is a QSC K12. All guitar knobs are on 10 for all recordings.

Basic 800

Chords

Open E chord

12th Fret

I decided to record all of my Bluesbirds using the same methodology so that I could compare them in an upcoming article. I do three things: A chord progression, an open E chord, and a solo riff at the 12th fret. I do all three of these things on both the Marshall JCM-800 patch and on the Fender Champ patch.

For each recording, I cycle through all of the possible pickup combinations, those being (in order): neck pickup, both pickups (in phase), both pickups (out of phase), bridge pickup. Trust me when I that if you get tired of hearing the same riffs over and over, that can’t possibly compare with how much I hate hearing them after playing them 140 times and testing and editing the sound files for hours. Yikes.

Tiny Tweed

Chords

Open E

12th Fret

I chose these two amp settings because I like them and I think they give a good sampling of two very commonly used tones.

I really did not find any of the tones to be unwelcome. On my Guild S300A-D that I had for decades, I never used the phase switch because I thought it sounded terrible, but that guitar had Dimarzio pickups in it which I think may have been the problem. On the M-75 with its HB-1 pickups, I think the out-of-phase sound is quite usable depending on the amp in use.

In my opinion, it’s damn-near impossible to make a bad tone come out of this guitar. I’m sure I could hand it to a random kid in Guitar Center who could prove me wrong, but that’s a topic for another time.

Playability

Guild-1974-M75-Bluesbird-TopVert

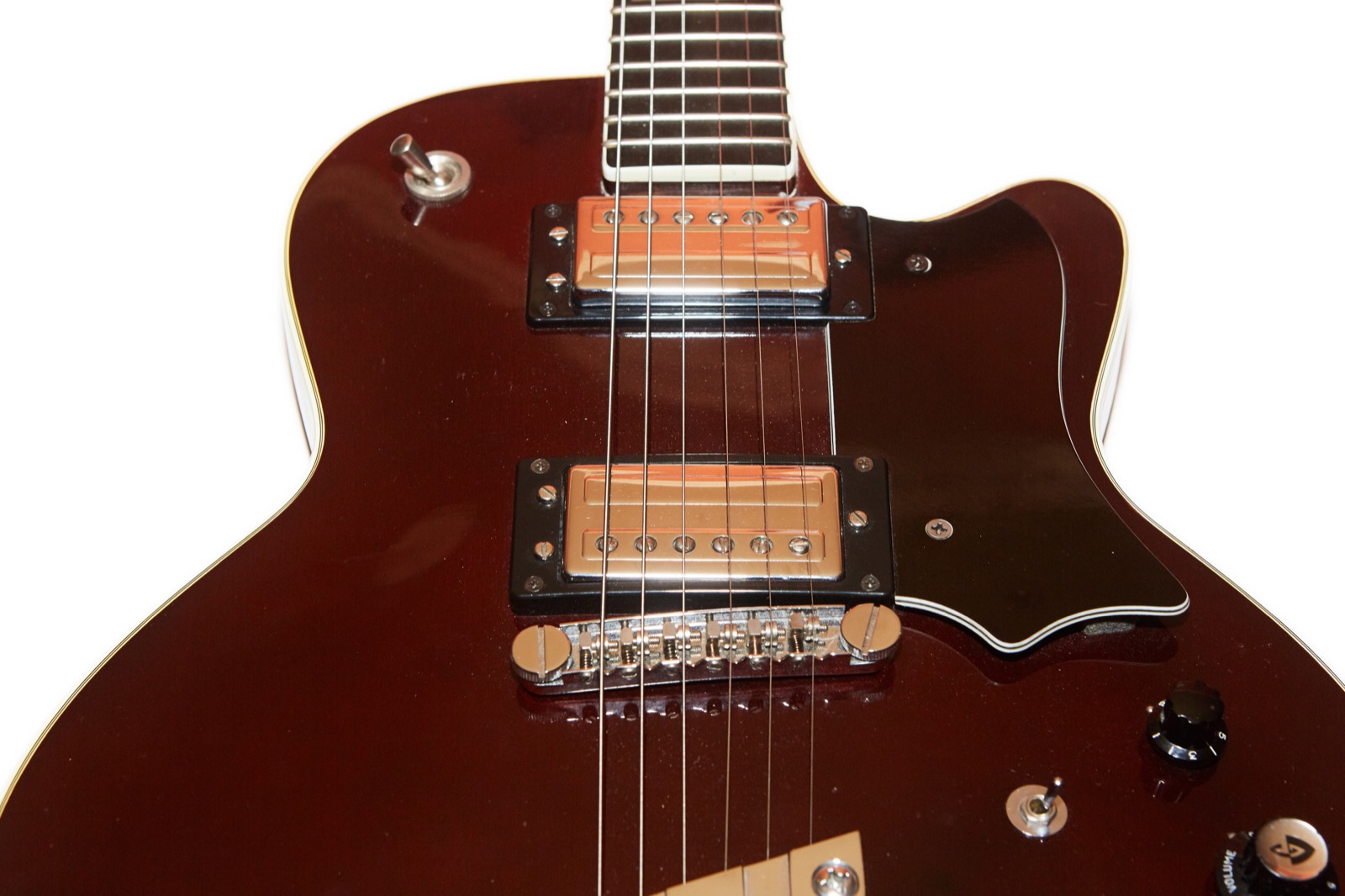

This a great playing guitar, though I have one complaint with it which is the neck. Guilds from the 1970s are known for having small necks and this one delivers in that regard. The neck is shallow and narrow and, though playable, is narrow enough that even a slightly aggressive vibrato technique on either of the E strings leads to me pulling the string off the fretboard. If I play it for more than 15 minutes or so I tend to adjust my playing so it’s not the end of the world, but I just like wider necks.

One of the things I like about the Mueller bridge is the fact that it’s simple to adjust string spacing, though the neck is so thin that pulling the strings even further together reduces playability for me, so I just alter my technique in order to adjust to the smaller fretboard. In fact, this is one of the few guitars that makes me forget about the small fretboard. It’s just that good.

This guitar is very thin, and that makes an absolute joy to play. I have a lot of electrics, and this one, though not as thin as a Gibson SG or Guild S-100, is pretty close. Imagine a Les Paul but thinner and that’s what you get with this guitar. It’s very comfortable to play both sitting and standing and I swear that while standing I don’t even notice it’s there. You know, except for the fact that I’m holding it with both hands.

Conclusion

I scored this guitar for half of what they usually go for, all due to the terrible finish blemish on the top. This guitar is a robust, great-sounding instrument, and if you like thinner necks, you’ll fall in love with a Guild M-75 instantly. The problem is that they usually sell for big money, so you might have to settle for a beater if you don’t want to spend your precious shekels in Les Paul quantities.

Guild-1974-M75-Bluesbird-TopFull

Honestly, and this is complete opinion on my part, this guitar sounds better than even the Gibson Les Paul Historics I’ve owned (two R9s and one R8). If only it had a beefier neck, then I would say that it crushes them utterly, but the truth is that I enjoy the fat necks on the Les Paul Historics. I just don’t enjoy them enough to pay the ridiculous sums of money that they command.

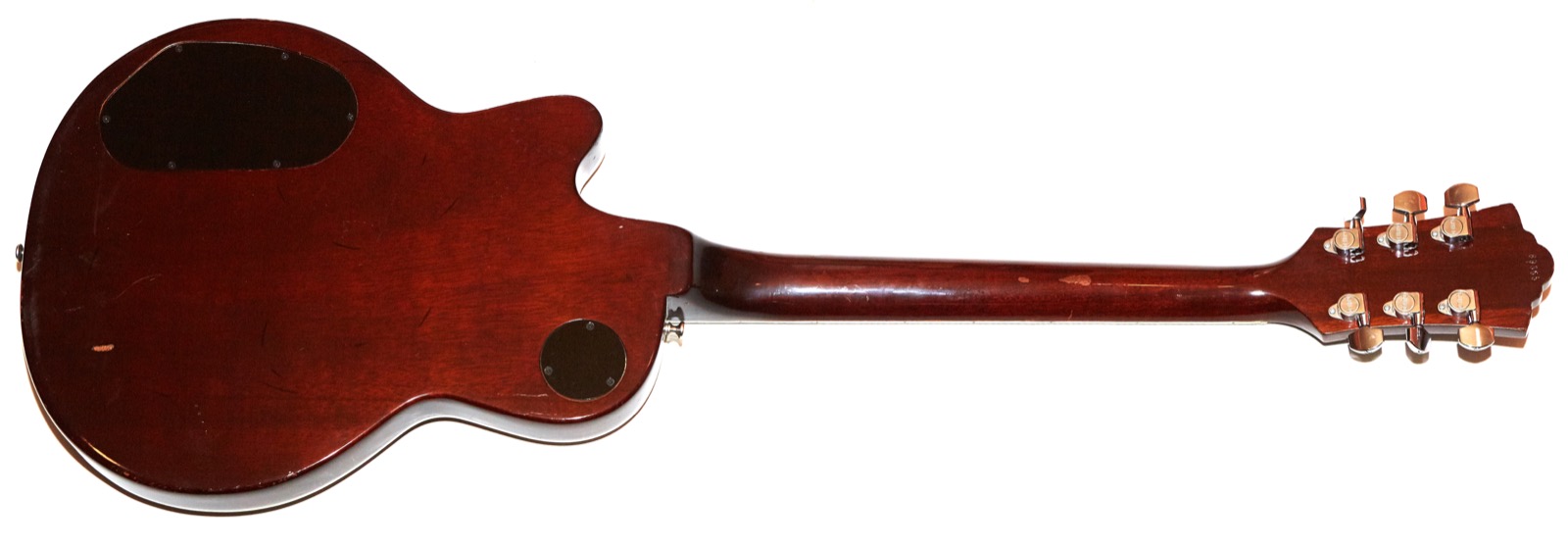

Guild-1974-M75-Bluesbird-BackFull

Bottom line: If you see a Guild M75 and you can afford it, buy it, especially if you like smaller necks. Hell, if it’s anything like this one, but it anyway and learn to adapt. It’s that good.
